RightMark Audio Analyzer test report
| Testing device | ЖУ· Мйое Йо |
| Sampling mode | 16-bit, 48 kHz |
| Interface | |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.4.1 |
| 20 Hz - 20 kHz filter | OFF |
| Normalize amplitude | OFF |
| Level change | 0.7 dB / 0.7 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.03, -0.21 |
Very good |
| Noise level, dB (A) | -104.9 |
Excellent |
| Dynamic range, dB (A) | 95.9 |
Excellent |
| THD, % | 0.0018 |
Excellent |
| THD + Noise, dB (A) | -89.1 |
Good |
| IMD + Noise, % | 0.0047 |
Excellent |
| Stereo crosstalk, dB | N/A |
N/A |
| IMD at 10 kHz, % | N/A |
N/A |
| General performance | Excellent |
Frequency response
/fr.png)
Left |
Right |
|
| From 20 Hz to 20 kHz, dB | -0.50, +0.03 |
-0.50, +0.03 |
| From 40 Hz to 15 kHz, dB | -0.21, +0.03 |
-0.21, +0.03 |

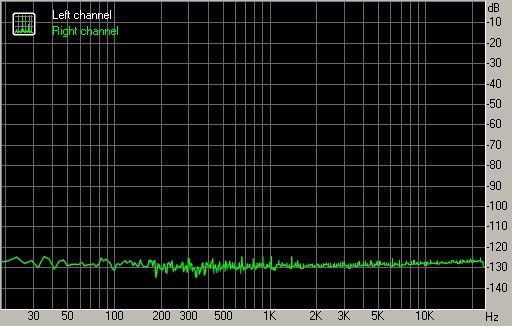

Noise level
/noise.png)
Left |
Right |
|
| RMS power, dB | -102.1 |
-102.1 |
| RMS power (A-weighted), dB | -104.9 |
-104.9 |
| Peak level, dB FS | -84.0 |
-84.0 |
| DC offset, % | -0.0 |
-0.0 |

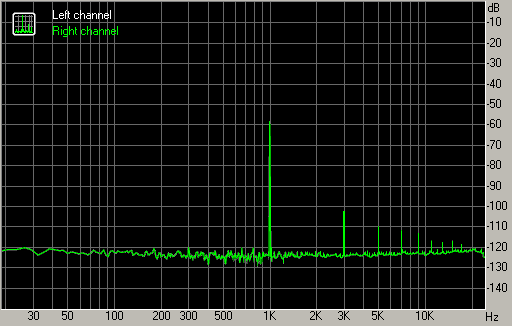

Dynamic range
/dynamics.png)
Left |
Right |
|
| Dynamic range, dB | +94.5 |
+94.5 |
| Dynamic range (A-weighted), dB | +95.9 |
+95.9 |
| DC offset, % | +0.00 |
+0.00 |
THD + Noise (at -3 dB FS)
/thd.png)
Left |
Right |
|
| THD, % | +0.0018 |
+0.0018 |
| THD + Noise, % | +0.0038 |
+0.0038 |
| THD + Noise (A-weighted), % | +0.0035 |
+0.0035 |
Intermodulation distortion
/imd.png)
Left |
Right |
|
| IMD + Noise, % | +0.0047 |
+0.0047 |
| IMD + Noise (A-weighted), % | +0.0039 |
+0.0039 |
